Stainless Steel Galvanized Walkway Grating Serrated Bar And Flat Bar With Firm Structure

Introduction:

Stainless Steel Bar Grating is manufactured from alloy types 304, 304L, 316, or 316L and available in grating types welded stainless, dovetail stainless pressure locked, and swage locked stainless. Popular for highly corrosive environments and long-lasting architectural applications, stainless steel bar gratings are available with bearing bar spacing ranging from 19/16" (1-3/16") to 7/16" on center and with cross bars at 4" or 2" on center. Each product is available with standard plain or optional serrated or Algrip surfaces. Are often used at chemical plants, food processing facilities, oil and gas producers and is also used in many other commercial and architectural applications.

Material:

Stainless Steel, High strength galvanized steel wire, Hot-dipped Galvanized iron wire

Surface Treatment: Unless specified, stainless steel grating will have a mill finish. The heat from the electroforge process produces a discoloration to the surface of the welded area. Electro-polishing is a means to remove the discoloration and is available upon request.

Features:

High strength and firm structure.
Outstanding corrosion resistance.
Excellent acid and alkali resistance.
Serrated surface for slip resistance.
Wide range of application in different fields.

Application:

Stainless Steel Grating is mainly used in chemical industry, food processing, hydro processing and other industries as listed:
Power plant;
Chemical plant;
Oil Refinery;
Steel plant;
Machinery plant;
Paper-making factory;
Cement plant;
Civil engineering;
Wastewater treatment;
Pharmacy industry;
Food processing.

Specifications

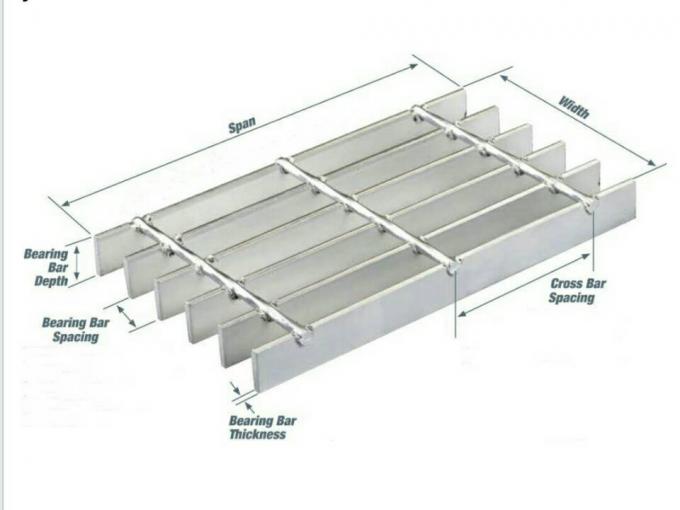

Drawing:

Packing:

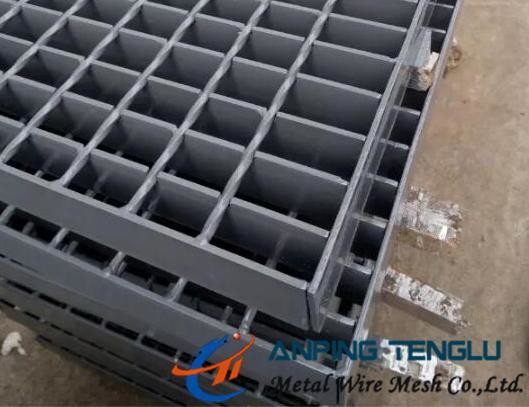

Firm Structure Galvanized Walkway Grating

Steel Walkway Grating Firm Structure

Galvanized Walkway Grating Serrated

Stainless Steel Galvanized Walkway Grating Serrated Flat Bar Firm Structure Images
